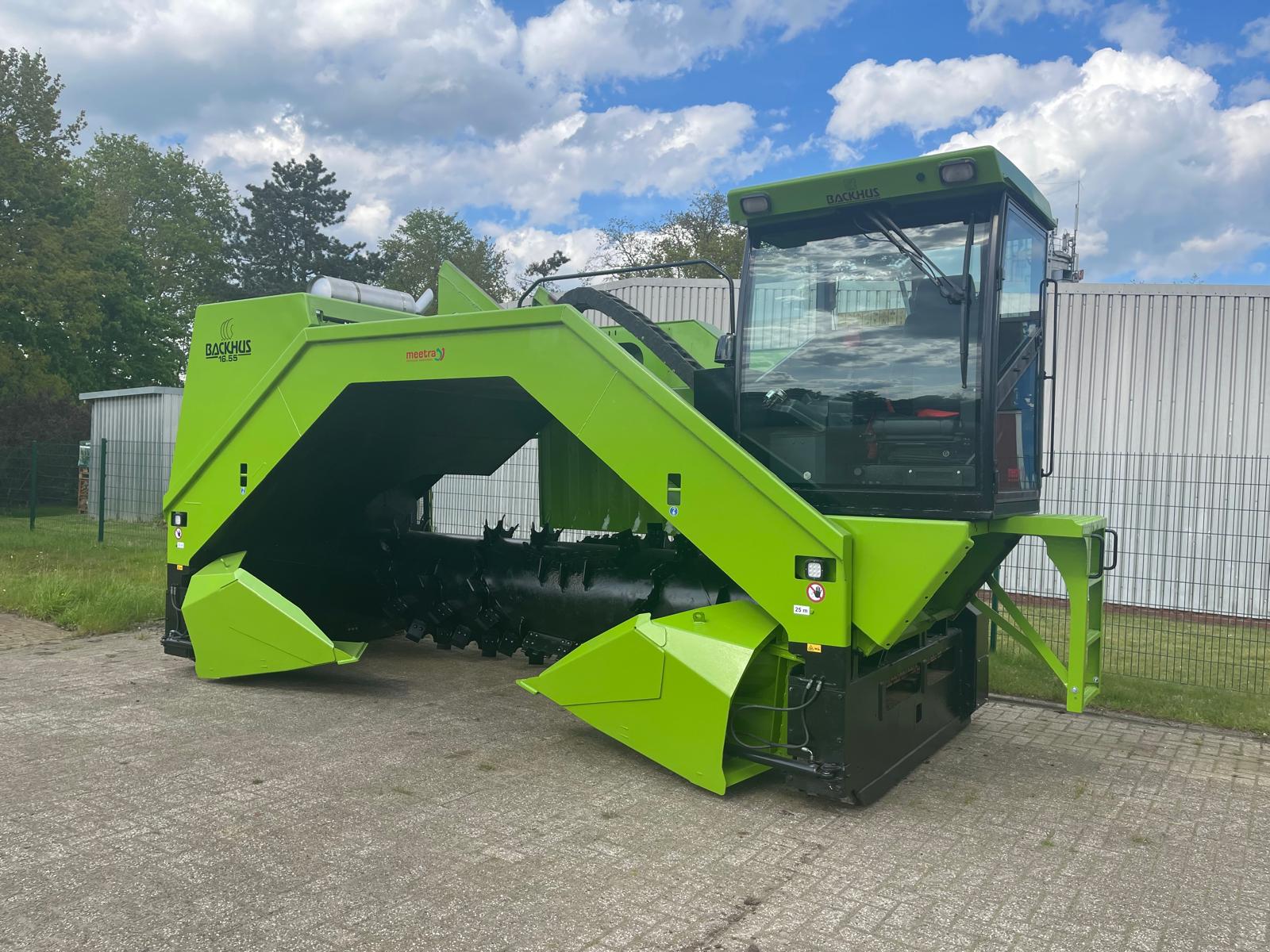

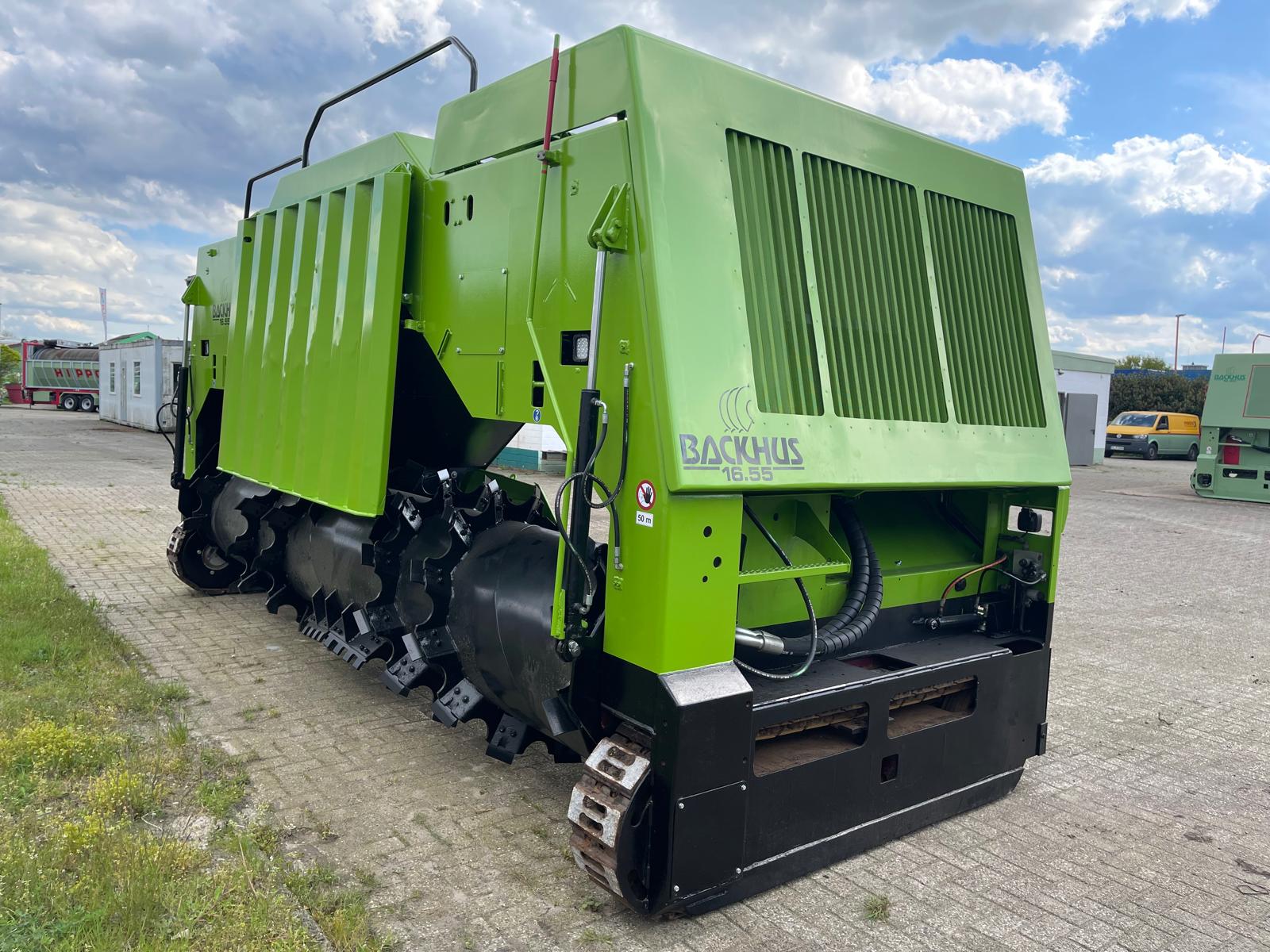

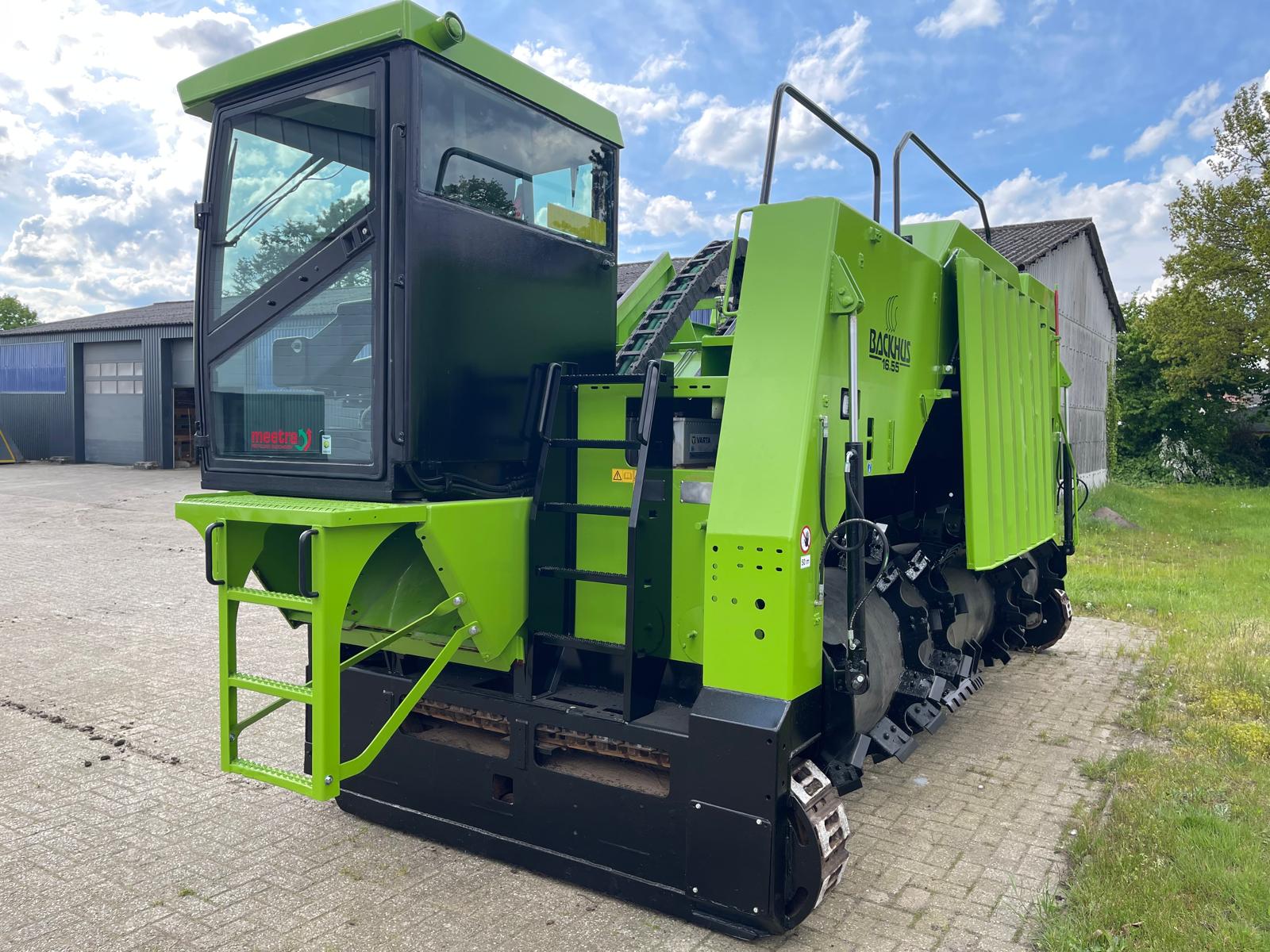

Our new machine BACKHUS is Compost turner with chain drives for triangular heap

Machine equipments:

hydraulic Joystick air condition system chain drives with steel plates Protection ventilation system Mobile Cabin incl. XL Track cleaner (plus 30 cm)

Technical data:

Heap width up to: 5,5 m Heap height up to: 2,4 m Heap cross-section at 45°: 7,5 m2 Displacement capacity up to: 3.000 m3/h Rotor diameter: 1,2 m Feed rate: 0- 50 m/min Working dimensions: Height: 4.500 mm Width: 5.700 mm Length 4.780 mm
